Description
Motorola HLN3333B Repeater Interface Communications Kit
System Overview

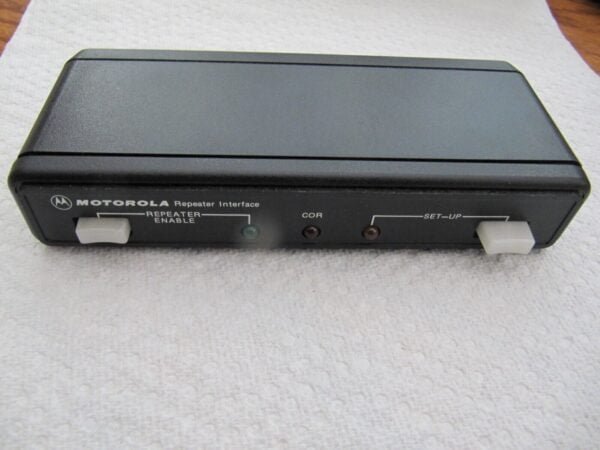

Motorola HLN3333B is a Repeater Interface Communications Kit (RICK) and it includes the manual.
The unit can be configured as single or bi-directional and can be used in single or crossband applications (depending on the radios used).
The manual that has all of the setup and cabling instructions for the RICK is Motorola part number 6880901Z79. It is recommended that all users of a RICK purchase this manual.
It covers much more detail on the system than can be presented here.

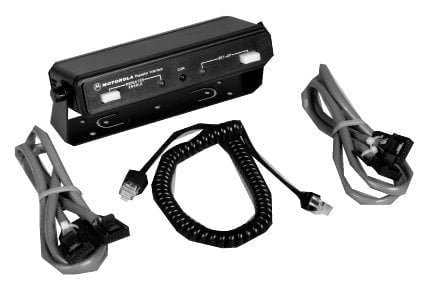

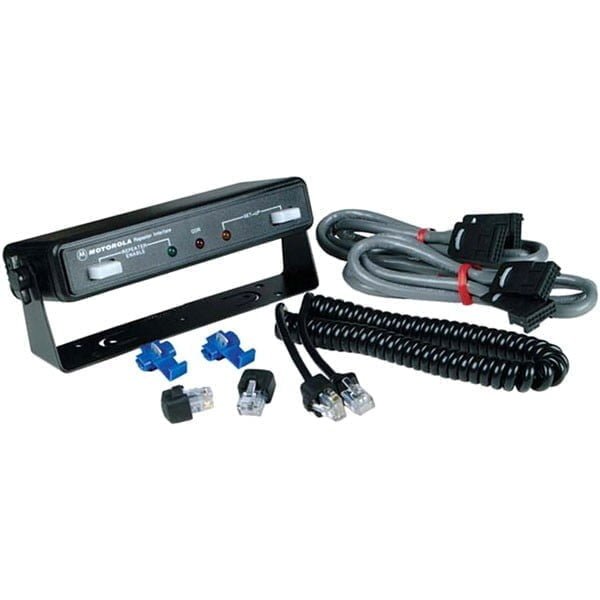

A typical RICK kit consists of:
- HLN9809 RICK Board
- HLN9822 RICK Hardware
- HKN9837 RICK Intercabling
- JLN9839 Mounting Hardware
If you want to be able to use the Setup/Knockdown features of the RICK, you must configure the transmit radio for Ignition Control.
To do this, you must clip or remove fuse F801 or jumper JU801 on the logic board of the transmitter radio.
About Motorola
Motorola is one of the best manufacturers of wireless communication devices in the world because of their real superiority in the wireless device market in the Kingdom of Saudi Arabia and in the world in general,
in addition to that Scope Systems EST is one of the authorized agents as a supplier for Motorola inside the Kingdom of Saudi Arabia
Motorola Corporation is an American telecommunications equipment, software, systems, and services company that is the successor to Motorola Corporation, after splitting from its mobile division into Motorola Mobility in 2011.
The company is headquartered in Chicago, Illinois.
