Description

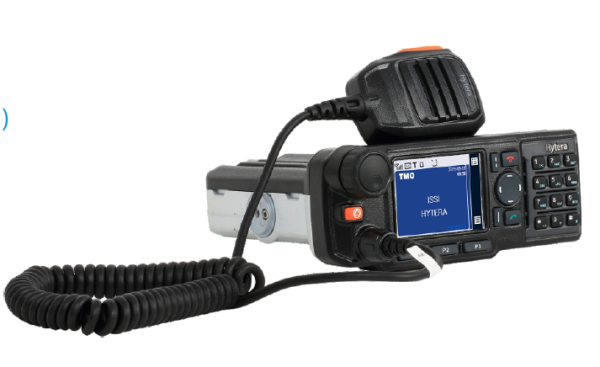

Hytera MT680 Plus (E) Mission-Critical TETRA Communications
The Hytera MT680 Plus E delivers secure, reliable voice and data communications for organizations where continuous connectivity is essential. Designed for vehicle installation, it combines high transmit power, advanced security, and intuitive operation for demanding field environments.
Ideal for:
- Public Safety
- Police & Security
- Fire & Rescue
- Ambulance Services
- Airports
- Ports & Harbors
- Oil & Gas
- Utilities
- Transportation
- Industrial Operations
Key Features
380–430 MHz TETRA Operation
Designed for professional TETRA networks operating within the 380–430 MHz frequency band, ensuring dependable wide-area communications.
High-Power 10W RF Output
The MT680 Plus E delivers up to 10 Watts of RF output, providing excellent coverage and communication reliability in vehicle-mounted applications.
Advanced Security & Encryption
Protect sensitive communications with enterprise-grade security features, including:
- Air Interface Encryption (AIE)
- End-to-End Encryption (E2EE)
- Authentication
- Multiple TETRA Security Classes
These capabilities help safeguard voice and data transmissions for mission-critical operations.
Integrated GPS Positioning
The Executive (E) version includes built-in GPS, enabling:
- Real-time vehicle tracking
- Fleet management
- Dispatcher location services
- Route monitoring
- Emergency location reporting
Compatible with GPS, GLONASS, and BeiDou positioning systems.
Large 2.8-inch Color Display
The high-resolution 320 × 240 pixel color LCD provides excellent readability and an intuitive user interface for call management, messaging, and navigation.
Crystal-Clear Digital Audio
Equipped with a powerful internal speaker delivering up to 4W rated (8W maximum) audio output, ensuring clear communications in noisy vehicles and industrial environments.
Rugged Design
Built to withstand demanding environments with:
- IP54 protection (main unit)
- IP67 protection (remote control head)
- MIL-STD-810G durability
- Operating temperature: -30°C to +60°C
Technical Specifications
| Specification | Details |
|---|---|
| Frequency Band | 380–430 MHz |
| Radio Standard | TETRA |
| RF Output Power | Up to 10 W |
| Channel Bandwidth | 25 kHz |
| Display | 2.8-inch Color LCD (320 × 240) |
| GPS | Yes (GPS / GLONASS / BeiDou) |
| Encryption | Air Interface Encryption & End-to-End Encryption |
| Audio Output | 4 W Rated (8 W Max Internal Speaker) |
| Operating Voltage | 10.8–15.6 VDC (13.2 V Typical) |
| Dust & Water Protection | IP54 (Radio), IP67 (Control Head) |
| Operating Temperature | -30°C to +60°C |
| Dimensions | 70 × 184 × 186 mm |
| Weight | Approx. 1.85 kg |
Specifications may vary depending on the hardware configuration and regional model.
Standard Features
- TETRA Voice Calls
- Group & Individual Calls
- Emergency Calls
- GPS Positioning
- Status Messaging
- SDS Text Messaging
- Group Scanning
- User Profiles
- OTAP (Over-the-Air Programming)
- 25 Programmable Keys
- Multi-language User Interface
Applications
The Hytera MT680 Plus E is ideal for:
- Public Safety Agencies
- Law Enforcement
- Fire & Rescue Services
- Emergency Medical Services
- Airport Operations
- Metro & Railway Networks
- Utilities & Power Companies
- Oil & Gas Facilities
- Industrial Manufacturing
- Fleet Management
Package Includes
- Hytera MT680 Plus E Mobile Radio
- Palm Microphone
- Mounting Bracket
- DC Power Cable
- User Documentation
