Description

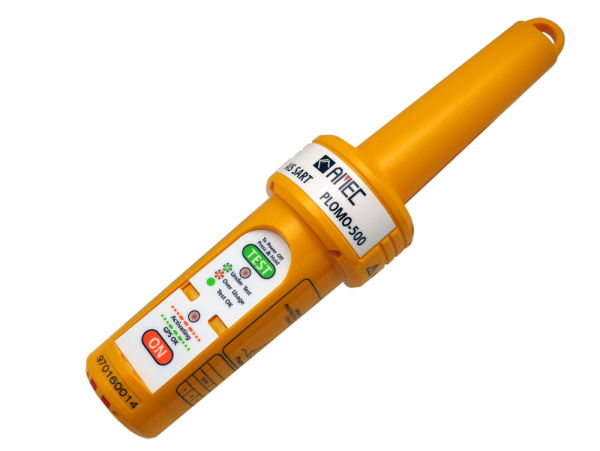

The PLOMO-500 AIS SART is a professional marine distress beacon designed to enhance safety at sea. With advanced AIS technology and integrated GPS, it ensures fast and accurate emergency location transmission.
Key Features:
Rugged and compact design
Innovative AIS technology for accurate distress signaling
Buoyant and fully waterproof up to 10 meters
Easy to assemble and carry
Minimum operating life of 96 hours
High-precision 48-channel GPS receiver
Supporting bar (extended length: 105 cm)
Lightweight design – AIS-SART weight: 283 g
Key Features:
Rugged and compact design
Innovative AIS technology for accurate distress signaling
Buoyant and fully waterproof up to 10 meters
Easy to assemble and carry
Minimum operating life of 96 hours
High-precision 48-channel GPS receiver
Supporting bar (extended length: 105 cm)
Lightweight design – AIS-SART weight: 283 g
Specification
| APPLICABLE STANDARDS | |
|---|---|
| IEC 61097-14 Ed. 1: 2010 | |
| IEC 60945 Ed. 4: 2002 incl. Corr. 1 (2008) | |
| ITU–R M.1371-5: 2014 | |
| IMO Resolution MSC.246(83) | |
| VHF TRANSMITTER | |
| Operating Frequency | AIS 1, 161.975MHz AIS 2, 162.025MHz |
| Data Rate | 9,600bps |
| Bandwidth | 25 KHz |
| Power Output | 1W EIRP |
| AIS Message Type | Message 1, Message 14 |
| Modulation | GMSK |
| Antenna | Integrated by PCB |
| GPS RECEIVER | |
| Receiving Channels | 72 channels |
| Acquisition Sensitivity | (-)159 dBm |
| Tracking Sensitivity | (-)159 dBm |
| Position Accuracy | < 2.5 m Autonomous & SBAS |
| BATTERY | |
| Type | Primary Lithium (not rechargeable) |
| Operating Life | 96 hours minimum |
| Storage | 6 years |
| Service | Replaceable |
| CARRY & MOUNTING | |
| Wall Mount | |
| Carry Bag | |
| ENVIRONMENTAL | |
| Operating Temperature | -20°C~55°C |
| Storage Temperature | -30°C~70°C |
| Waterproof | Immersion to 10m |
| Buoyancy | Floats |
| Exterior Finish | Highly Visible Yellow |
| Operating Temperature | -20°C~55°C |
| Compass Safe Distance | Standard Magnetic – 0.60 m |
| Steering Magnetic – 0.40 m | |
| PHYSICAL | |
| Max Diameter (Main Body ) | 70 mm (2.76 inch) |
| Length (Main Body) | 300 mm (11.81 inch) |
| Weight (Main Body) | 283 g (Battery included) |
| Length (Pole) | 1050 mm (41.34 inch) (Extended) |
| Weight (Pole) | 300 g |
| Weight (Storage Package) | 1.08 kg |
